Ch 8 Memory Management Strategies

• To provide a detailed description of various ways of organizing memory hardware
• To discuss various memory-management techniques, including paging and segmentation
• To provide a detailed description of the Intel Pentium, which supports both pure segmentation and segmentation with paging

Ch 8.1 Background

• Program must be brought (from disk) into memory and placed within a process for it to be run
• Main memory and registers are only storage CPU can access directly

  • Any data being used by the instructions, must be in one of these direct-access storage devices
• Register access in one CPU clock (or less)
• Main memory can take many cycles
• Cache sits between main memory and CPU registers
• Protection of memory required to ensure correct operation

8.1.1 Basic Hardware

• A pair of base and limit registers define the logical address space

  • Base register: specifies the size of smallest legal physical memory address.
  • Limit register: specifies the size of the range.
  • base and limit registers can be loaded only by the operating system

8.1.2 Address Binding

• Address binding of instructions and data to memory addresses can happen at three different stages

  • Compile time: If memory location known a priori, absolute code can be generated; must recompile code if starting location changes
  • Load time: Must generate relocatable code if memory location is not known at compile time
  • Execution time: Binding delayed until run time if the process can be moved during its execution from one memory segment to another. Need hardware support for address maps (base and limit registers)
• Multistep Processing of a User Program


8.1.3 Logical vs. Physical Address Space

• The concept of a logical address space that is bound to a separate physical address space is central to proper memory management.

  • Logical address – generated by the CPU; also referred to as virtual address
  • Physical address – address seen by the memory unit
• Logical and physical addresses are the same in compile-time and load-time address-binding schemes; logical (virtual) and
  physical addresses differ in execution-time address-binding
  scheme.
• Memory-Management Unit (MMU)

  • Hardware device that maps virtual to physical address
  • In MMU scheme, the value in the relocation register is added to every address generated by a user process at the time it is sent to memory.
  • The user program deals with logical addresses; it never sees the
    real physical addresses.

8.1.4 Dynamic Loading

• Routine is not loaded until it is called
• Better memory-space utilization; unused routine is never loaded
• Useful when large amounts of code are needed to handle infrequently occurring cases
• No special support from the operating system is required

  • implemented through program design

8.1.5 Dynamic Linking and Shared Libraries

• Linking postponed until execution time
• Small piece of code, stub, used to locate the appropriate memory-resident library routine
• Stub replaces itself with the address of the routine, and executes the routine
• Operating system needed to check if routine is in processes’ memory address
• Dynamic linking is particularly useful for libraries
• System also known as shared libraries

Ch 8.2 Swapping

• A process can be swapped temporarily out of memory to a backing store, and then brought back into memory for continued execution
• Backing store – fast disk large enough to accommodate copies of all memory images for all users; must provide direct access to these memory images
• Roll out, roll in – swapping variant used for priority-based scheduling algorithms; lower-priority process is swapped out so higher-priority process can be loaded and executed
• Major part of swap time is transfer time; total transfer time is directly proportional to the amount of memory swapped
• Modified versions of swapping are found on many systems (i.e., UNIX,
  Linux, and Windows)
• System maintains a ready queue of ready-to-run processes which have memory images on disk

Ch 8.3 Contiguous Memory Allocation

• Main memory usually into two partitions:

  • Resident operating system, usually held in low memory with interrupt vector
  • User processes then held in high memory

8.3.1 Memory Mapping and Protection

• Relocation registers used to protect user processes from each other, and from changing operating-system code and data

  • Base register contains value of smallest physical address
  • Limit register contains range of logical addresses – each logical address must be less than the limit register
  • MMU maps logical address dynamically

8.3.2 Memory Allocation

• One of the simplest methods for allocating memory is to divide memory into several fixed-sized partition.

  • Each partition may contain exactly one process

• Multiple-partition allocation

  • Hole – block of available memory; holes of various size are scattered throughout memory
  • When a process arrives, it is allocated memory from a hole large enough to accommodate it
  • Operating system maintains information about:

    • allocated partitions
    • free partitions (hole)

How to satisfy a request of size n from a list of free holes:

• First-fit: Allocate the first hole that is big enough
• Best-fit: Allocate the smallest hole that is big enough; must search entire list, unless ordered by size

  • Produces the smallest leftover hole
• Worst-fit: Allocate the largest hole; must also search entire list

  • Produces the largest leftover hole

First-fit and best-fit better than worst-fit in terms of speed and storage utilization.

8.3.3 Fragmentation

• External Fragmentation – total memory space exists to satisfy a
  request, but it is not contiguous
• Internal Fragmentation – allocated memory may be slightly larger
  than requested memory

  • This size difference is memory internal to a partition but not being used
• Reduce external fragmentation by compaction

  • Shuffle memory contents to place all free memory together in one large block
  • Compaction is possible only if relocation is dynamic, and is done at execution time
  • I/O problem

    • Lock job in memory while it is involved in I/O
    • Do I/O only into OS buffers

Ch 8.4 Paging

8.4.1 Basic Method

• Logical address space of a process can be noncontiguous; process is allocated physical memory whenever the latter is available
• Divide physical memory into fixed-sized blocks called frames (size is power of 2, between 512 bytes and 8,192 bytes)
• Divide logical memory into blocks of same size called pages

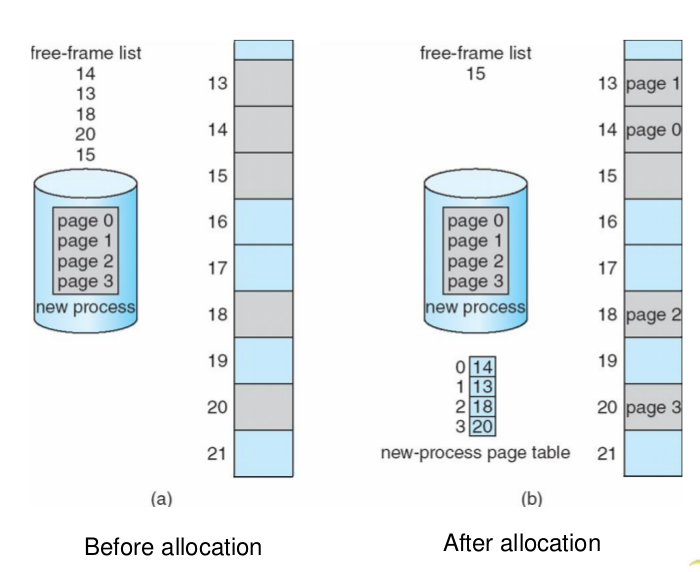

• Keep track of all free frames
• To run a program of size n pages, need to find n free frames and load program
• Set up a page table to translate logical to physical addresses
• Internal fragmentation
• Address generated by CPU is divided into:

  • Page number(p) – used as an index into a page table which contains base address of each page in physical memory
  • Page offset(d) – combined with base address to define the physical memory address that is sent to the memory unit

page number	page offset
p	d
m - n	n

• the high-order m-n bits of a logical address designate the page number, and the n low-order bits designate the page offset

• For given logical address space 2^m and page size 2ⁿ

8.4.2 Hardware support

Implementation of Page Table

• Page table is kept in main memory
• Page-table base register (PTBR) points to the page table
• Page-table length register (PRLR) indicates size of the page table
• In this scheme every data/instruction access requires two memory accesses.

  • page table
  • data/instruction.
• The two memory access problem can be solved by the use of a special fast-lookup hardware cache called associative memory or translation look-aside buffers (TLBs)
• Some TLBs store address-space identifiers (ASIDs) in each TLB entry

  • uniquely identifies each process to provide address-space protection for that process

• Associative memory – parallel search
• Address translation (p, d)

  • If p is in associative register, get frame# out
  • Otherwise get frame# from page table in memory

Effective Access Time
- Associative Lookup = E time unit

• Assume memory cycle time is 1 microsecond
• Hit ratio – percentage of times that a page number is found in the associative registers; ratio related to number of associative registers
• Hit ratio = a
• Effective Access Time (EAT)

    EAT = (1 + E)a + (2 + E)(1 - a)
        = 2 + E - a

8.4.3 Protection

• Memory protection implemented by associating protection bit
  with each frame
• Valid-invalid bit attached to each entry in the page table:

  • valid indicates that the associated page is in the process’ logical address space, and is thus a legal page
  • invalid indicates that the page is not in the process’ logical address space

8.4.4 Shared Pages

• Shared code

  • One copy of read-only (reentrant) code shared among processes (i.e., text editors, compilers, window systems).
  • Shared code must appear in same location in the logical address space of all processes
• Private code and data

  • Each process keeps a separate copy of the code and data
  • The pages for the private code and data can appear anywhere in the logical address space


Ch 8.5 Structure of the Page Table

• Hierarchical Paging
• Hashed Page Tables
• Inverted Page Tables

8.5.1 Hierarchical Paging

• Break up the logical address space into multiple page tables
• A simple technique is a two-level page table

• A logical address (on 32-bit machine with 1K page size) is divided into:

  • a page number consisting of 22 bits
  • a page offset consisting of 10 bits
• Since the page table is paged, the page number is further divided into:

  • a 12-bit page number
  • a 10-bit page offset
• Thus, a logical address is as follows:

	Page number	page offset
p1	p2	d
12	10	10

- p1 is an index into the outer page table, and p2 is the displacement within the page of the outer page table
Address-Translation Scheme:

Three-level Paging Scheme:

8.5.2 Hashed Page Tables

• Common in address spaces > 32 bits
• The virtual page number is hashed into a page table

  • This page table contains a chain of elements hashing to the same location
• Virtual page numbers are compared in this chain searching for a match

  • If a match is found, the corresponding physical frame is
    extracted

8.5.3 Inverted Page Table

• One entry for each real page of memory
• Entry consists of the virtual address of the page stored in that real memory location, with information about the process that owns that page
• Decreases memory needed to store each page table, but increases time needed to search the table when a page reference occurs
• Use hash table to limit the search to one — or at most a few — page-table entries

Ch 8.6 Segmentation

• Memory-management scheme that supports user view of memory
• A program is a collection of segments

  • A segment is a logical unit such as:

    • main program
    • procedure
    • function
    • method
    • object
    • local variables, global variables
    • common block
    • tack
    • symbol table
    • arrays

User’s view of a Program:

Logical View of Segmentation:

Segmentation Architecture:

• Logical address consists of a two tuple:

    <segment-number, offset>;

• Segment table – maps two-dimensional physical addresses; each table entry has:

  • base – contains the starting physical address where the segments reside in memory
  • limit – specifies the length of the segment
• Segment-table base register (STBR) points to the segment table’s location in memory
• Segment-table length register (STLR) indicates number of
  segments used by a program;

    if s < STLR
        // segment number s is legal

• Protection

  • With each entry in segment table associate:

    • validation bit = 0 –> illegal segment
    • read/write/execute privileges
• Protection bits associated with segments; code sharing occurs at segment level
• Since segments vary in length, memory allocation is a dynamic storage-allocation problem
• A segmentation example is shown in the following diagram

Ch 8.7 Example: The Intel Pentium

• Supports both segmentation and segmentation with paging
• CPU generates logical address

  • Given to segmentation unit

    • Which produces linear addresses
  • Linear address given to paging unit

    • Which generates physical address in main memory
    • Paging units form equivalent of MMU

Logical to Physical Address Translation in Pentium:

Reference: Operating System Concepts 8th, by Silberschatz, Galvin, Gagne
